Solutions - 2021

Part of the Oxford MAT Livestream

Download PDF version

These are the solutions for the Graphs & Transformations worksheet. You should have a go at sketching the graphs before looking at mine!

Here's a copy of what was written during the livestream;

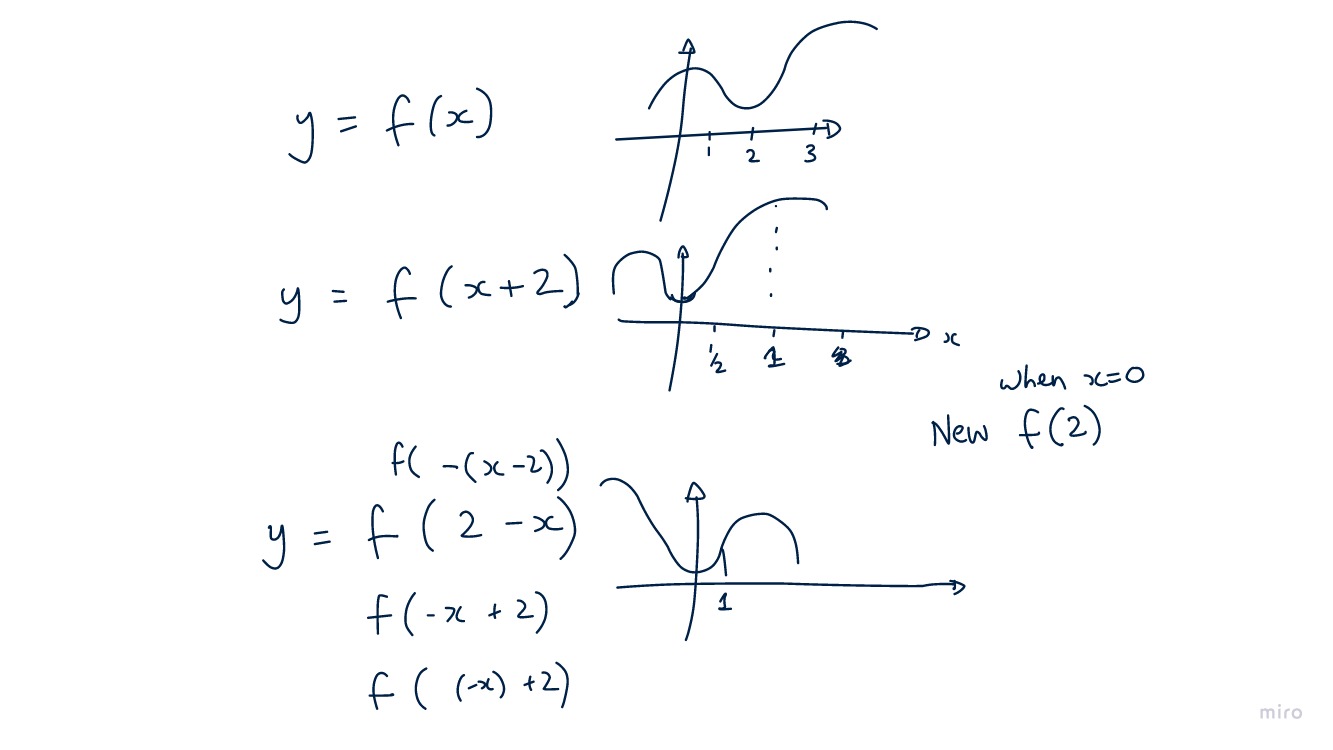

Some transformations. A graph y=f(x) is shown, and y=f(x+2) is a translation two units left. Then y=f(2-x) is a reflection of that curve in the y-axis. MAT livestream. Two parabolas are shown (a>0 smile and a<0 frown) and the first warm-up question is labelled MAT livestream. Graphs for the first MAT question are shown, with the regions numbered. Some of the algebra for the logarithm question is shown, together with a calculation for x=1. MAT livestream. Reasoning for the third MAT question has been written onto the question (see below). The notation |x|, vertical bars around x, is defined as minus x if x<0 and x if x is greater than or equal to zero. MAT livestream. The definition of f_k(x) has been annotated with pink circles around the x's and blue arrows pointing at the k's in the subscript and in the definition. The example f_{0.1}(x)=x(x-0.1)(x-2) is given.

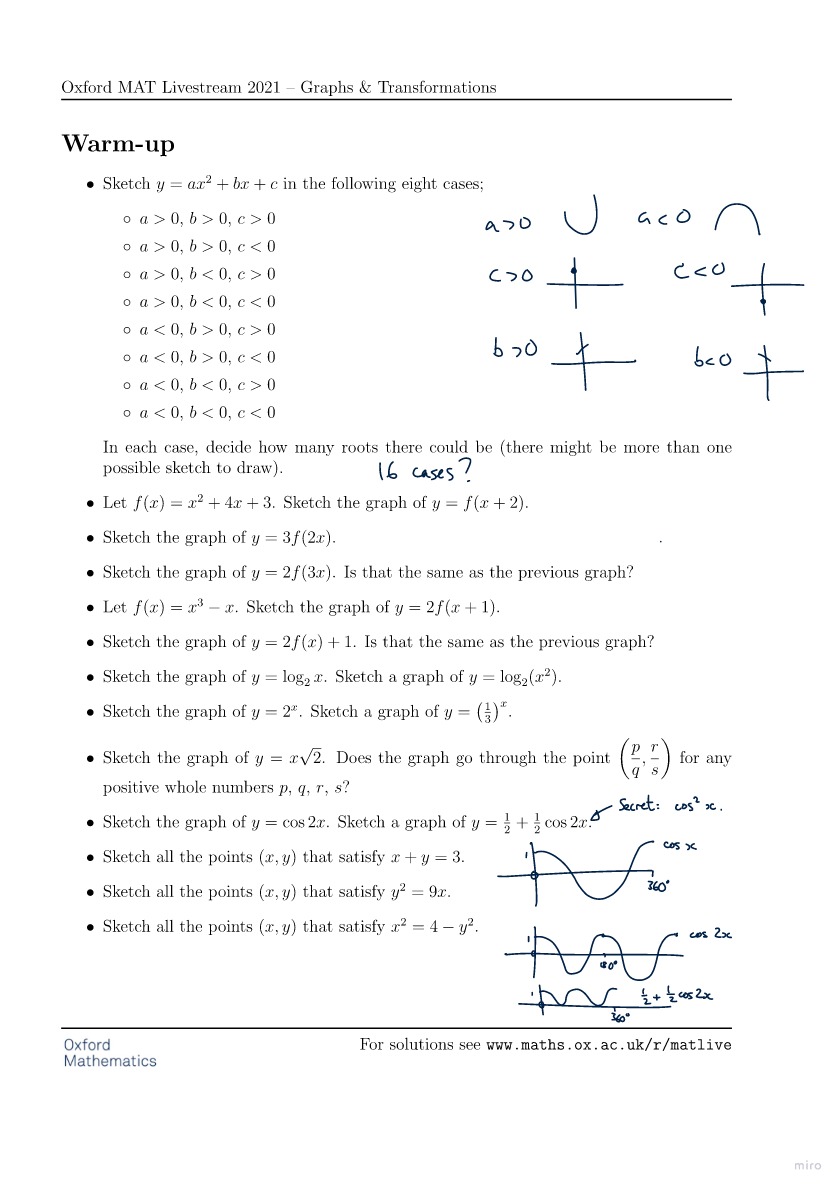

Warm-up

  • Sketch $y=ax^2+bx+c$ in the following eight cases;
    • $a>0$, $b>0$, $c>0$. There could be 0 or 1 or 2 roots.
    • Three parabolas. (1) above the x-axis, minimum in top-left quadrant. (2) minimum on x-axis with x<0. (3) minimum in lower-left quadrant, y-intercept positive.
    • $a>0$, $b>0$, $c<0$. Must have two roots.
    • Parabola, with one positive root and one negative root, minimum in the lower-left quadrant (and it points upwards like a smile).
    • $a>0$, $b<0$, $c>0$. There could be 0 or 1 or 2 roots.
    • Three parabolas. (1) minimum in the top-right quadrant. (2) minimum on the x-axis with x>0. (3) minimum in the lower-right quadrant, positive y-intercept
    • $a>0$, $b<0$, $c<0$. Must have two roots.
    • Parabola with two roots, one positive, one negative. Minimum in lower-right quadrant. Curves upwards like a smile.
    • $a<0$, $b>0$, $c>0$. Must have two roots.
    • Parabola with two roots, one positive, one negative, and maximum in upper-right quadrant, and it curves down like a frown.
    • $a<0$, $b>0$, $c<0$.  There could be 0 or 1 or 2 roots.
    • Three parabolas. (1) All negative, with maximum in lower-right quadrant. (2) Negative, with maximum on x-axis with x>0. (3) Maximum in upper-right quadrant, with two positive roots.
    • $a<0$, $b<0$, $c>0$. Must have two roots.
    • Parabola. Two roots, one positive, one negative. Maximum in the upper-left quadrant. Curves down like a frown.
    • $a<0$, $b<0$, $c<0$. There could be 0 or 1 or 2 roots.
    • Three parabolas. (1) Negative, with maximum in lower-left quadrant. (2) Negative, with maximum on x-axis, x<0. (3) Maximum in the upper-left quadrant, with two negative roots. All curve down like a frown.
  • Let $f(x)=x^2+4x+3$. Sketch the graph of $y=f(x+2)$.
    • Note that $x^2+4x+3=(x+3)(x+1)$. The graph of $y=f(x+2)$ is the graph of $y=f(x)$ after it has been translated two units to the left.
    • Two parabola. Left one labelled f(x) with two negative roots. Right one labelled f(x+2) with two negative roots, more negative than before!
  • Sketch the graph of $y=3 f( 2 x)$.
    • The graph is "squashed" by a factor of 2 parallel to the $x$-axis, then "stretched" by a factor of 3 parallel to the $y$-axis.
    • Parabola that's got two negative roots very near each other, and has very steep gradient near the roots down to a very low minimum.
  • Sketch the graph of $y=2 f( 3 x)$. Is that the same as the previous graph?
    • Another squashed and stretched parabola. This one has the minimum in a different place (less extreme).
    • No. For example, the roots aren't in the same places. We could also check that $3\left((2x)^2+4(2x)+3\right)$ isn't the same thing as $2\left((3x)^2+4(3x)+3\right)$, but that feels like a lot of work.
  • Let $f(x)=x^3-x$. Sketch the graph of $y=2f(x+1)$.
    • Two cubics. The one on the left has roots at -1 and 0 and 1, and turning points in between. The second cubic has roots at -2 and -1 and 0, and the turning points are further from the x-axis than the previous cubic.
  • Sketch the graph of $y=2f(x)+1$. Is that the same as the previous graph?
    • A graph of a cubic. This one has a root for negative x, then two turning points (but stays above the x-axis after that one root).
    • No. We could compare, for example, the values of $2f(x+1)$ and $2f(x)+1$ when $x=0$. Those are $2f(1)$ and $2f(0)+1$, which are 0 and 1, so not the same. Note that even if these values were the same, then the graphs might still be different (this is just a spot-check at $x=0$).
  • Sketch the graph of $y=\log_2 x$. Sketch a graph of $y=\log_2 (x^2)$.
    • Note that $\log_2(x^2)=2\log_2 x$
    • Two log graphs, which are very negative near x=0 before growing, getting larger at a slower and slower rate. The graph on the right is the same as the one on the left, but with values that are twice as far from the x-axis.
  • Sketch the graph of $y=2^x$. Sketch a graph of $y=\left(\frac{1}{3}\right)^{x}$.
    • Two exponential graphs. The one on the left grows faster and faster. The one on the right decreases, with a gradient that gets less and less negative as x increases. Both have y-intercept equal to 1.
  • Sketch the graph of $y= x\sqrt{2}$. Does the graph go through the point $\displaystyle \left(\frac{p}{q},\frac{r}{s}\right)$ for any positive whole numbers $p$, $q$, $r$, $s$?
    • Straight line through the origin with positive gradient.
    • Let's suppose that $\displaystyle \frac{r}{s}=\sqrt{2}\times\frac{p}{q}$. Then we would have $\displaystyle\sqrt{2}=\frac{qr}{ps}$. But $\sqrt{2}$ is irrational, so we can't have $p,q,r,s$ all be positive whole numbers, or we would have written $\sqrt{2}$ as a fraction.
  • Sketch the graph of $y=\cos 2x$. Sketch a graph of $y=\frac{1}{2} + \frac{1}{2}\cos 2x$.
    • Two cosine graphs. The left one oscillates between 1 and -1 (with three turning points strictly between 0 and 360 degrees). The second is a squashed and translated version of the first; it oscillates between 1 and 0.
  • Sketch all the points $(x,y)$ that satisfy $x+y=3$.
    • That's the straight line $y=3-x$.
    • Straight line through (0,3) and (3,0).
  • Sketch all the points $(x,y)$ that satisfy $y^2=9x$.
    • We could have $y=3\sqrt{x}$ or $y=-3\sqrt{x}$.
    • Parabola that's been rotated clockwise by 90 degrees!
    • Alternatively, if you switch $x$ and $y$ you get a parabola. Switching $x$ and $y$ is a reflection in the line $y=x$ (not on the list of transformations on the MAT syllabus, but you might have come across it).
  • Sketch all the points $(x,y)$ that satisfy $x^2=4-y^2$.
    • That's the circle $x^2+y^2=4$.
    • Circle with radius 2 centred on the origin
    • Note that for these last two, there is no function $y=f(x)$ that covers all of the points in the sketch, because there are some values of $x$ where there are two or more points that satisfy the equation. A classic question that's like this is "sketch all the points $(x,y)$ that satisfy $\cos(x)=\cos(y)$".



MAT questions

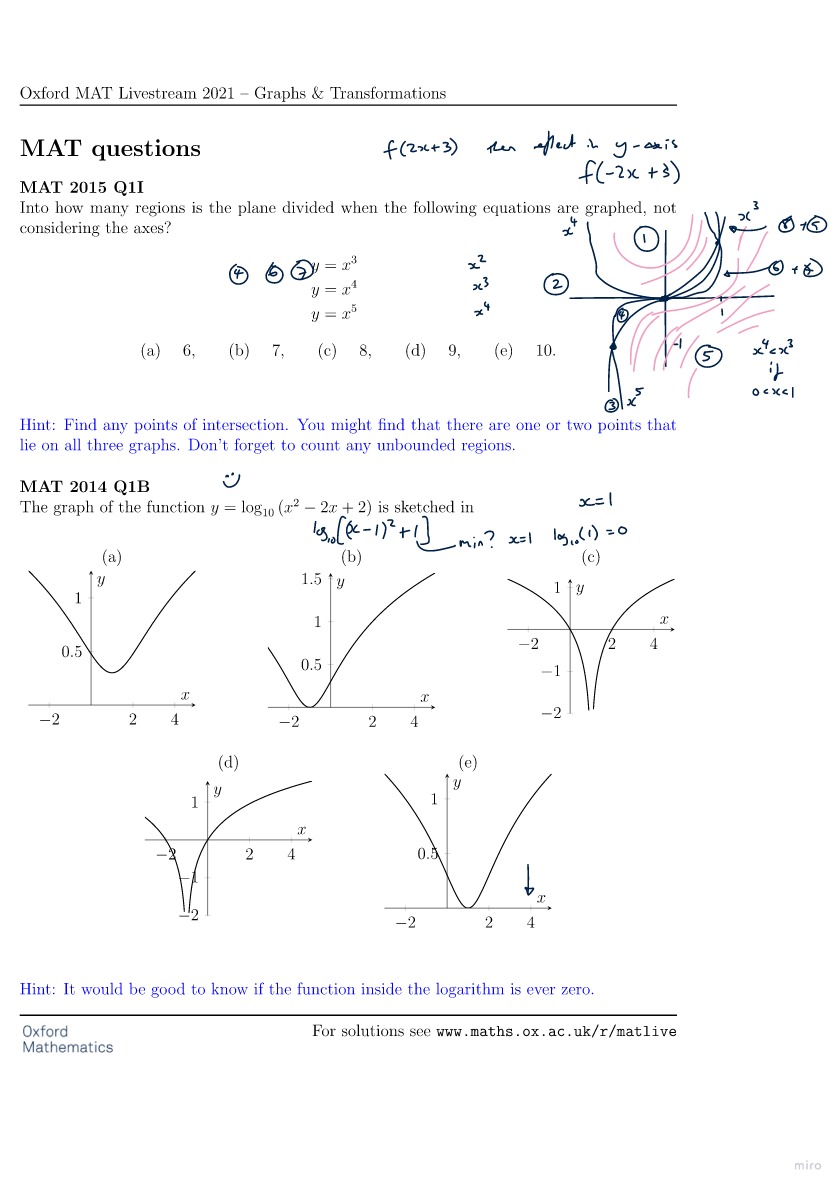

MAT 2015 Q1I

A cubic, quartic, quintic on the same axes. The cubic and quintic meet at (-1,-1) and at (1,1), and the quartic also goes through (1,1). The three curves also all go through the origin.
  • First draw a rough sketch. When $x>0$ all the values are positive. When $x<0$ two of them are negative and one is positive. All the graphs go through $(0,0)$ and $(1,1)$ and two of them go through $(-1,-1)$. There are no other points of intersection.
  • Now count the regions; there are some big regions like the one above all the graphs and the region below all the graphs. Over in $x<0$ there are three more regions. For $x>0$ it's a bit more complicated; we've counted the region below all three graphs and the region above all three graphs, but there are four more regions in between the graphs (two in $0<x<1$ and then two regions in $x>1$).
  • Overall that adds up to nine (two massive regions, three more on the left, four more on the right).
  • The answer is (d).

MAT 2014 Q1B

  • The function inside the brackets is $(x-1)^2+1$. That's always positive (so this logarithm is always defined), and in fact it's always bigger or equal to one, so this logarithm will only give us positive values.
  • The particular value $x=1$ is interesting, because that's the location of the minimum of the quadratic inside the brackets. At that value of $x$, we have $y=\log_{10} 1=0$. So the graph includes the point $(1,0)$. Only one of the options does that.
  • The answer is (e).

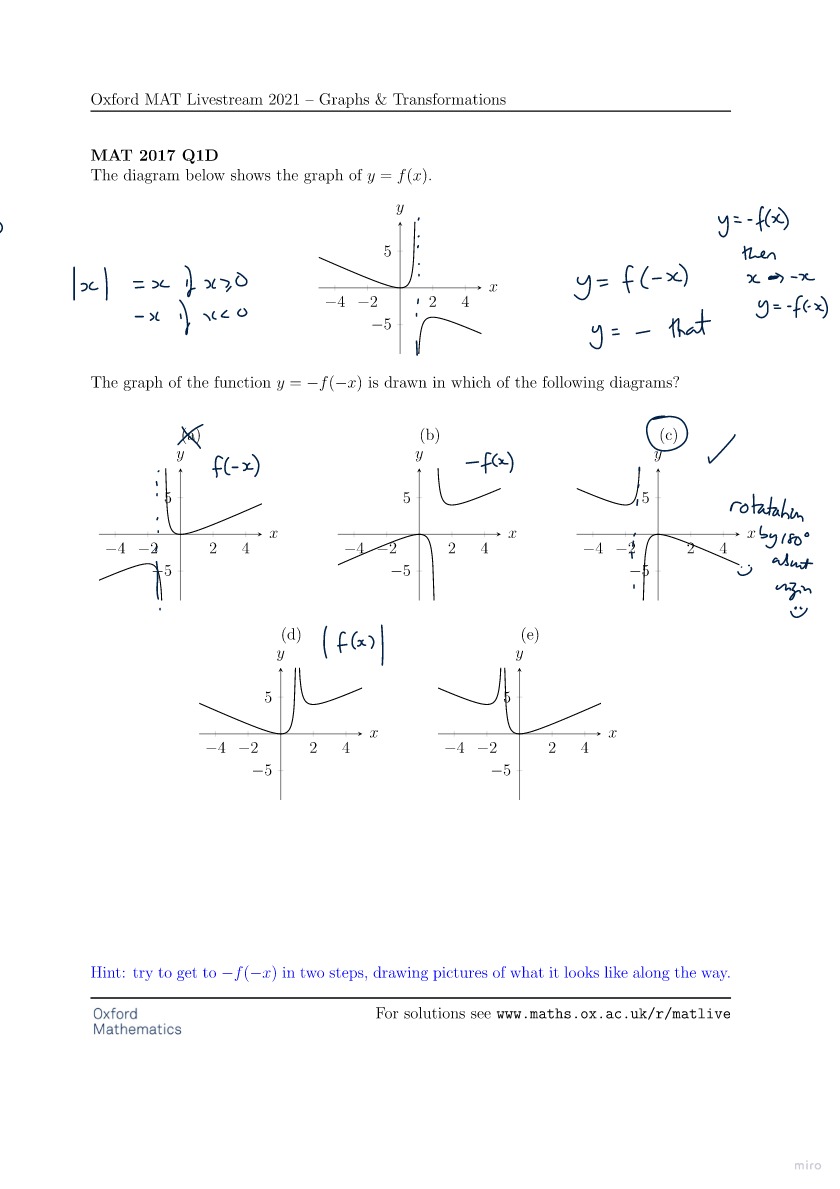

MAT 2017 Q1D

  • First, let's look at the main features of $f(x)$. It's got very large absolute value near $x=1$. For large $x$ (either positive or negative) it looks a bit like the straight line $y=-x$ to me.
  • Now let's think about $y=f(-x)$. That would be the result of a reflection in the $y$-axis, so we would get a graph with big values near $x=-1$ and which looks like $y=x$ for large $x$.
  • Now think about $y=-f(-x)$. That would be a reflection of the previous graph in the $x$-axis, so we would get a graph with big values near $x=-1$ and which looks like $y=-x$ for large $x$.
  • Only one of the graphs does that.
  • The answer is (c).

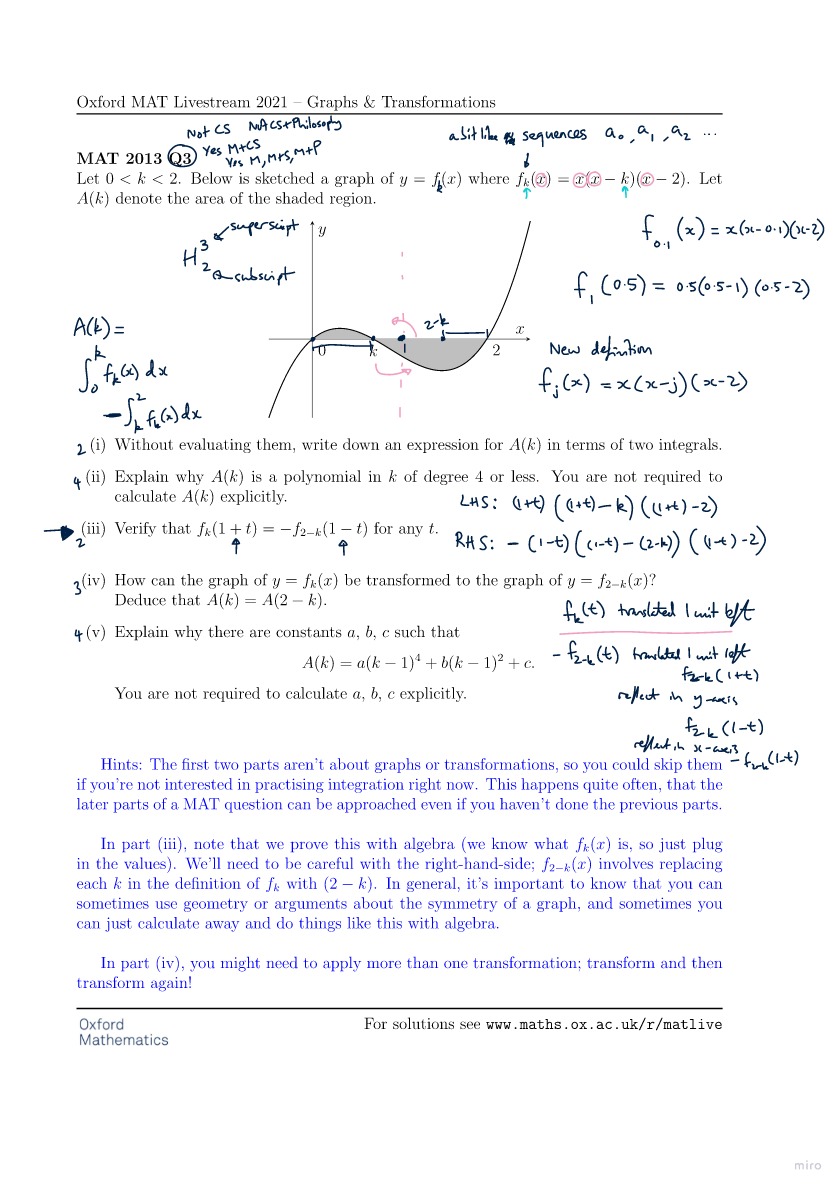

MAT 2013 Q3

(i) We've got to be careful, because $f(x)$ changes sign in between 0 and 2. We want the integral from 0 to $k$, then we want to subtract the integral from $k$ to 2 because the function is negative in that region (and areas are positive). So we want \[A(k)=\int_0^k f(x)\,\mathrm{d}x-\int_k^2 f(x)\,\mathrm{d}x.\]

(ii) We know that $f_k(x)$ is a cubic polynomial, but it's a little bit complicated because that polynomial involves $k$. If we multiply out the middle bracket of $f_k(x)$, then we get \[f_k(x)=x^2(x-2) - kx(x-2),\] so the integral \[\int f(x)\,\mathrm{d}x= \int x^2(x-2)\,\mathrm{d}x-k\int x(x-2)\,\mathrm{d}x.\]

That's removed $k$ from the function inside each integral. When we do these integrals we'll get a degree-4 polynomial that doesn't depend on $k$ and degree-3 polynomial that's multiplied by $k$. We have two definite integrals, each of which involves plugging $k$ into those polynomials. So we we'll end up with a degree-4 polynomial in $k$ and a degree-3 polynomial in $k$ that's multiplied by $k$. Overall, that's a polynomial in $k$ of degree at most 4 ("at most" because the coefficient of $k^4$ might cancel between the two terms).

(iii) If we replace $x$ with $1+t$ then we get $f_k(1+t)=(1+t)(1+t-k)(1+t-2)$. Now I've got to really concentrate to work out $-f_{2-k}(1-t)$. I need to take $f_k(x)=x(x-k)(x-2)$ and replace every $x$ with $1-t$ and replace every $k$ with a $2-k$. And remember the minus sign out the front. I get \[-f_{2-k}(1-t)=(1-t)(1-t-(2-k))(1-t-2)=(1-t)(k-1-t)(t+1)\] where I've done some tidying up to get the last expression. That does match the expression for $f_k(1+t)$.

(iv) Let's interpret the previous result in terms of transformations. On the left, we've got the graph of $f_k(t)$, but it's been translated to the left by a distance of 1. On the right, we've got the graph of $f_{2-k}(t)$, but... it's had the $t$ switched to a $1-t$. What's that? It's what would happen if we replaced $t$ with $1+t$ and then replaced $t$ in that new expression with $-t$. So that's a translation by one unit to the left and then a reflection in the $y$-axis. We actually have $-f_{2-k}(1-t)$ with a minus sign out the front, which represents a reflection in the $x$-axis.

So putting this together, if we take the graphs of $f_k(t)$ and $f_{2-k}(t)$ and translate them both one unit to the left, then we reflect the second graph in the $y$-axis and in the $x$-axis, we get the same graph (those things are equal by the previous question part). Said differently without the translation, $f_{2-k}(t)$ is what we get if we reflect $f_k(t)$ in the line $x=1$ and in then in the $x$-axis.

Those reflections don't affect the area, so $A(k)$, the area for $f_k(x)$, is the same as the area $A(2-k)$ for $f_{2-k}(x)$.

(v) We know that $A(k)$ is a degree-4 polynomial. We can write it as $A(k)=a(k-1)^4+d(k-1)^3+b(k-1)^2+f(k-1)+c$, where I've chosen unusual names for the coefficients so that it matches with the answer I'm working towards. We just need to prove that $d=0$ and $f=0$. We've got the fact $A(2-k)=A(k)$. If we plug in $2-k$ into our expression for $A(k)$ and equate coefficients, we get $d=0$ and $f=0$. That leaves the expression in the question.



Reflection

  • In the long question we thought about some reflections. In general, $f(2-x)$ is the reflection of $f(x)$ in the line $x=1$ (note; not $x=2$). We can do something similar for reflections in other lines $x=c$.
  • In one of the warm-up problems we thought about reflecting in the line $y=x$ by switching $x$ with $y$. That's a bit harder to imagine. Reflecting in the line $y=mx$ is very fiddly; there's an equation for it, but you don't need to know it for MAT.
